Calibration Baths

25-year Experience in Building High Quality Calibration baths

Ultimate price/performance ratio

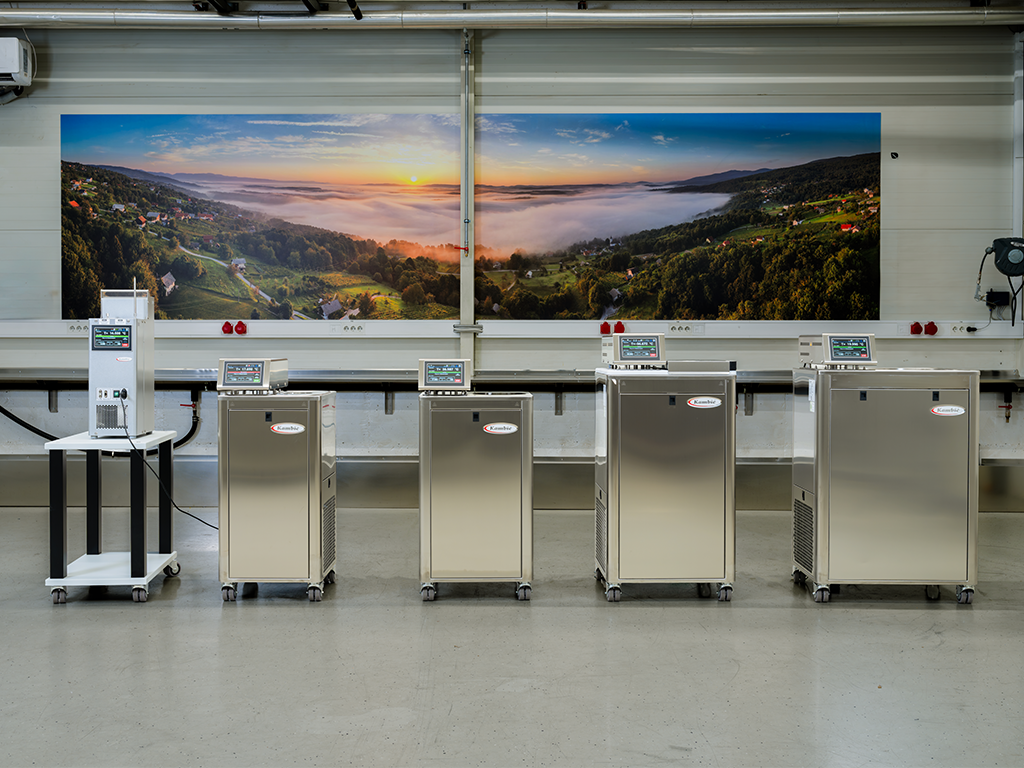

Top class units with highly praised metrological performance and intuitive yet flexible operation. Select from 10 models featuring 4 different volumes, each with 2/3 distinctive temperature ranges.

Customized sizes, variations and accesories available.

The exceptional precision is achieved through a sophisticated 2-cylinder system with a uniform vertical flow throughout the utilized portion of the tank, combined with a finely balanced high-performance microprocessor control loop.

Calibration baths are the ideal units for calibrating temperature sensors, transmitters or even complete temperature systems. Not only do they allow calibration of multiple systems at the same time, but also offer the added advantage of accommodating sensors of all shapes and sizes. Finally, there is an assurance that sensor and reference are always subjected to the same temperature.

Calibration baths employ varying cooling systems, depending on the model's temperature range. These can range from simple tap water cooling through to integrated compressors or even multi-stage cascade-compressors for the models with ultra-low temperature ranges.

Features:

• Forced fluid circulation
• An innovative circulation system enables a uniform and stable temperature across the entire operating cilinder

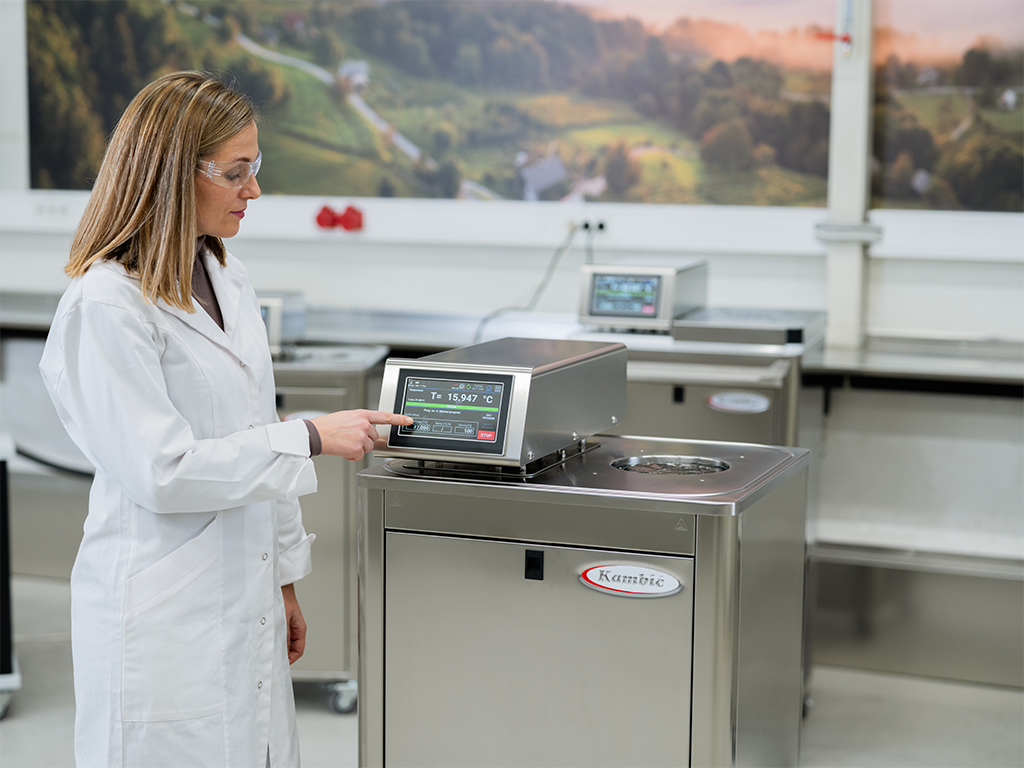

• The units are operated via an innovative and user friendly control panel which includes an LCD display, and offer configurable PID controller
• Visual and audible alarms in the event of a failure
• Resolution for temperature set-point 0.1°C
• Resolution for temperature display 0.01°C
• Dual protection system against uncontrolled over-temperature events:
  • Heating elements turn off automatically if measured temperature exceeds the set threshold by 5°C
  • Mechanical over-temperature device shuts off heating elements if temperature exceeds maximum allowed values
• Interior chamber manufactured from AISI 304 stainless steel
• Exterior panels made from powder-coated aluminized sheet, light grey (RAL7035)
• Software for chamber calibration via end user (password protected)
• Varaity of accessories available

Pictures:

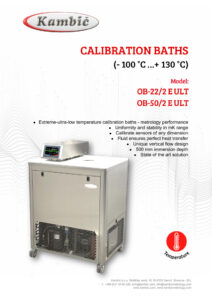

Available chamber types with the corresponding technical data sheets:

We offer custom solutions – Please describe your specific requirements and we will offer you a tailored system!

Accessories:

Select from a large range of accessories and options, such as:

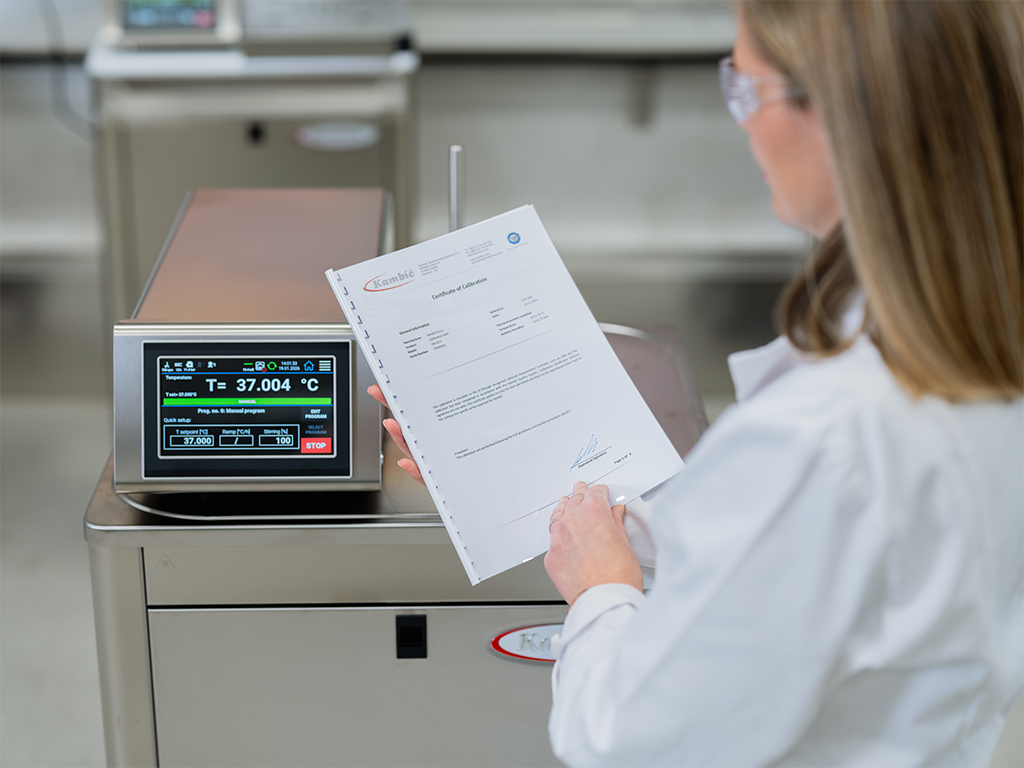

• Calibration certificate (10 different locations, 3 different temperatures)

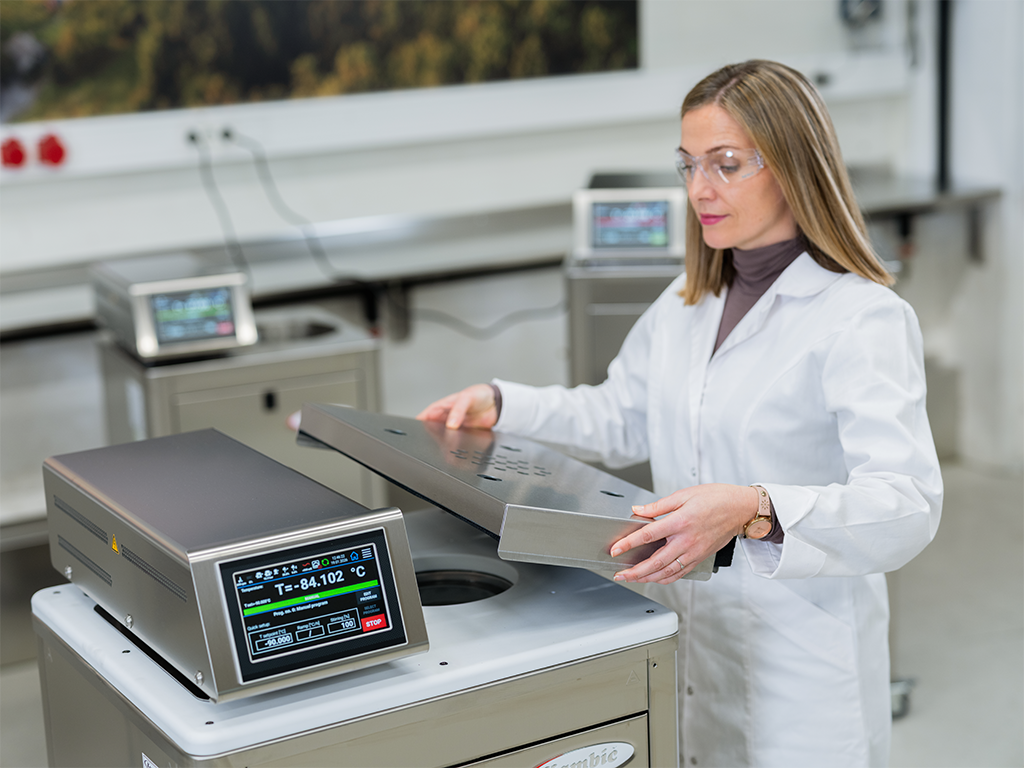

• Additional & tailored lid

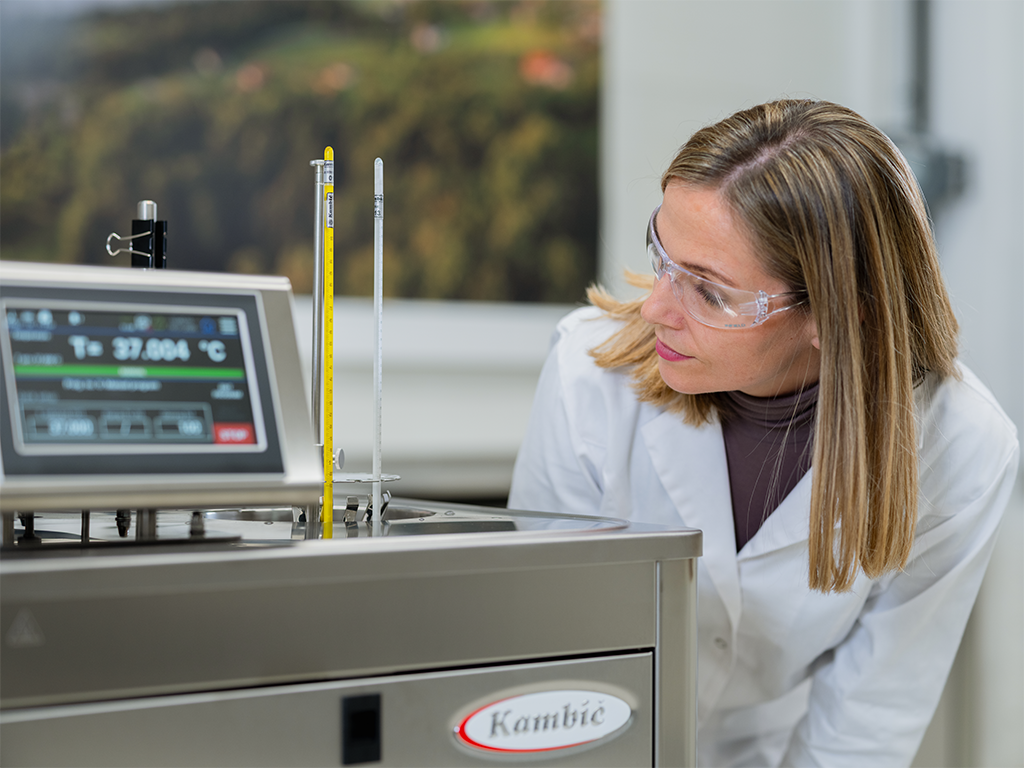

• LIG Holders (liquid in glass thermometer holder)
• Software for monitoring & history (PC control and data history)
• IQ/OQ documentation
• Ethernet interface
• USB interface

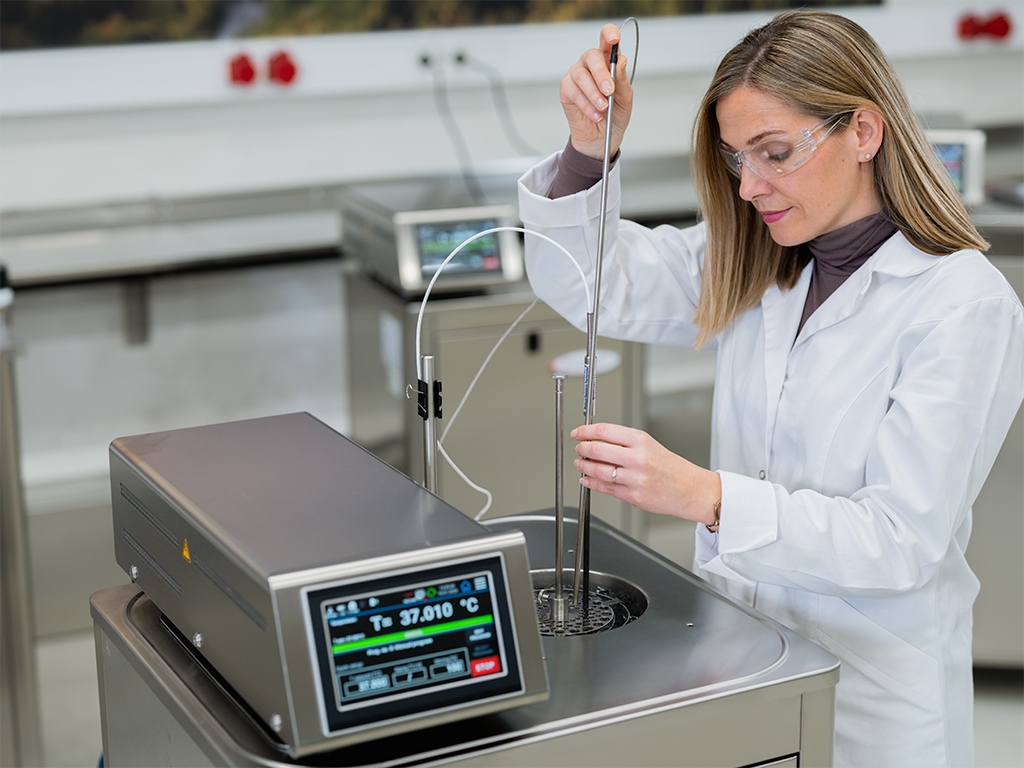

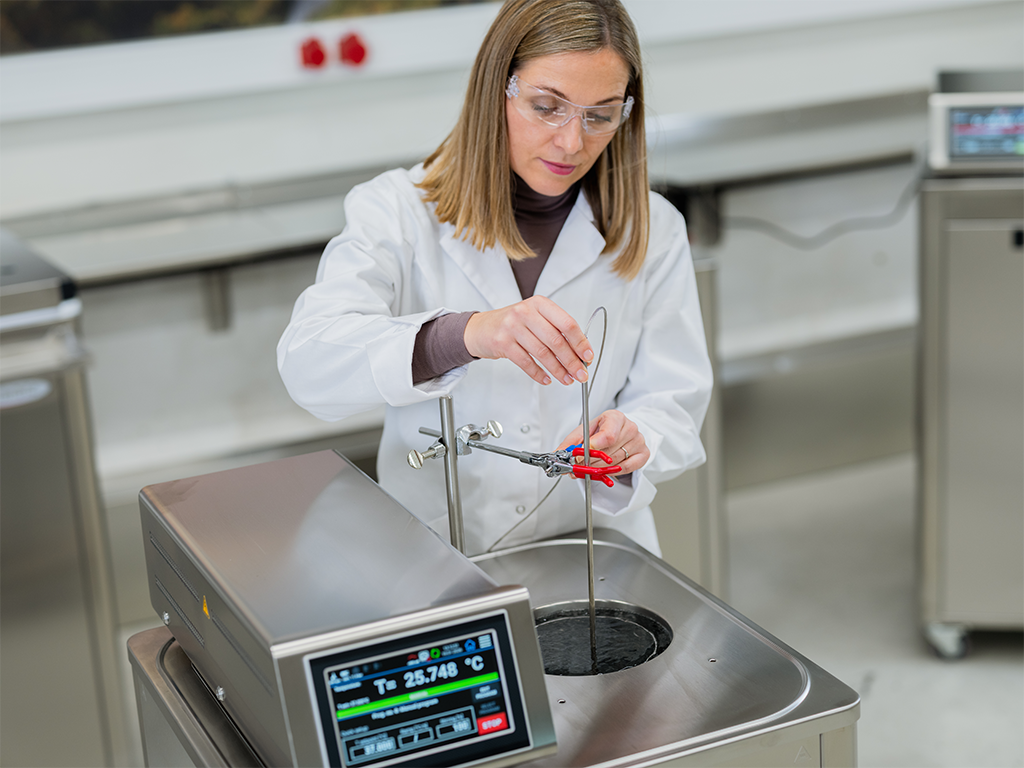

• Adjustable multi probe fixture
• Vertical fixture

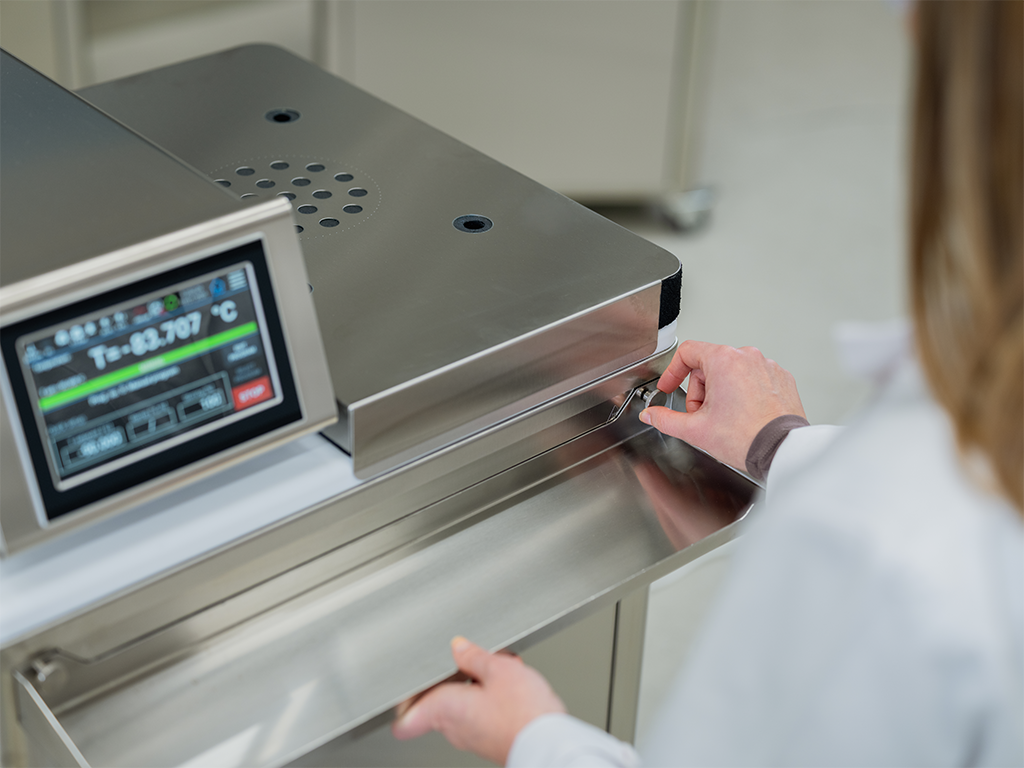

• Foldable shelve
• External fluid level
• Additional local fume hood with fan

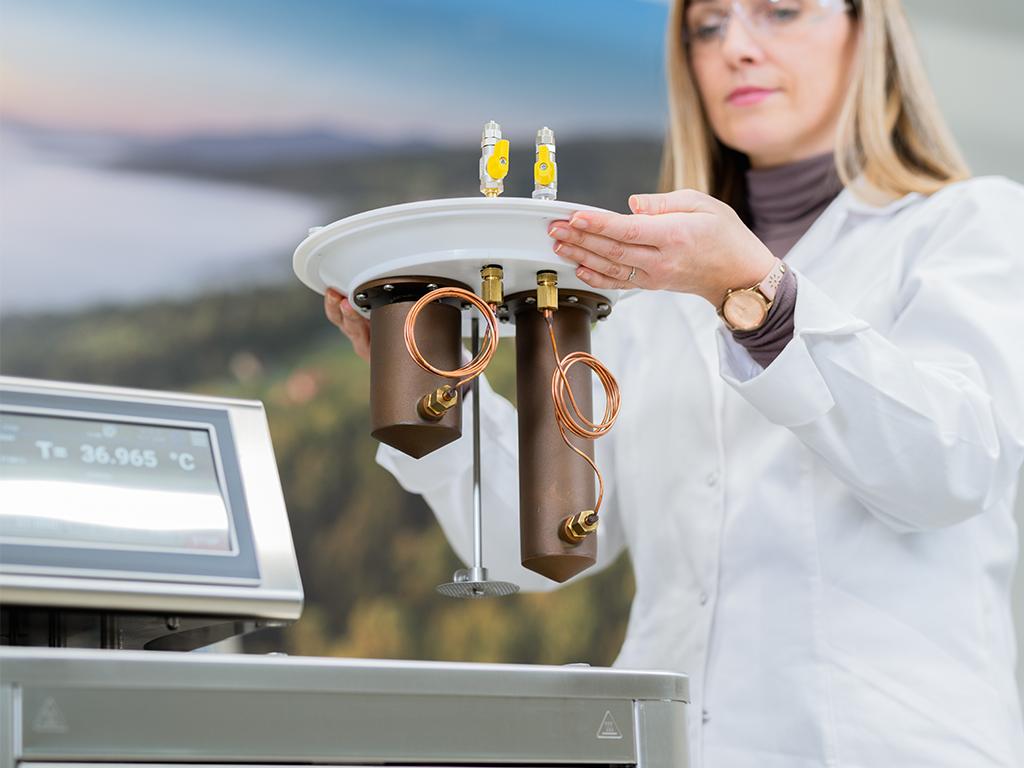

• Black body's

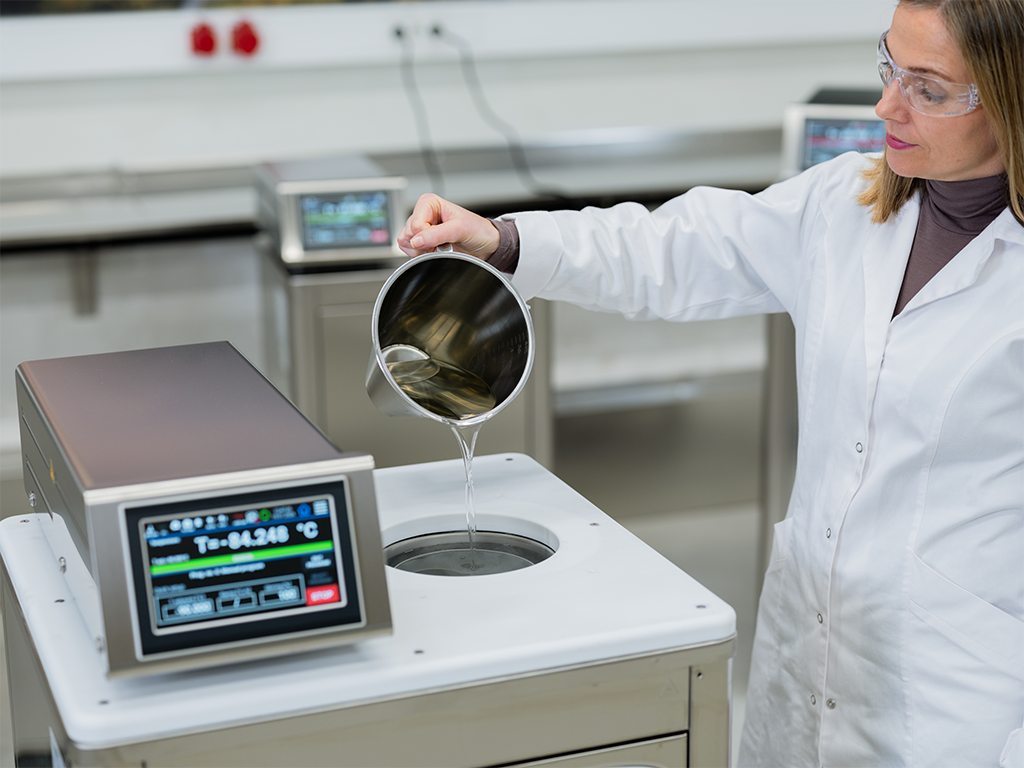

• Fluids for baths

Typical applications:

• Calibration laboratories
